Industrial IoT
Gateways
EPG Series

High-performance IIoT gateways engineered for extreme environments. Real-time edge computing with native Modbus, MQTT, and OPC-UA integration.
Protocol Support:
MODBUS
MQTT
OPC-UA
Bacnet
OPC-UA
S7
EthernetIP
ALL IIoT Gateways
Entry Series
Performance Series

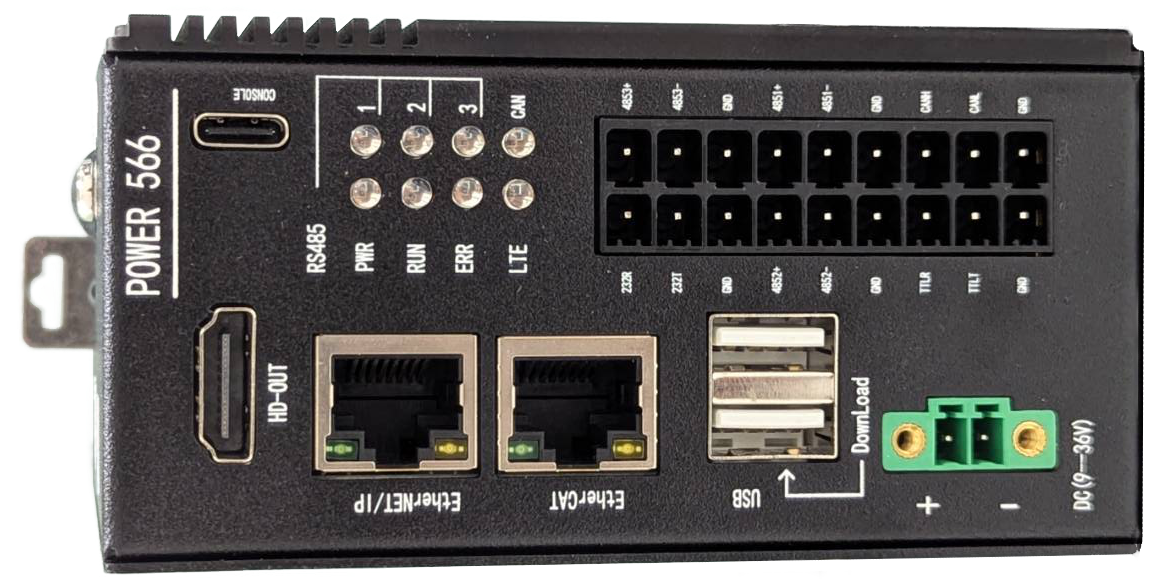

EPG-004S

Processor
64 bit Quad-core ARM
Storage
32 GB
RAM
2 GB
1 x Fast, 1 x Gigabit Ethernet, 3 x RS-485,
1 x RS-232, 1 x HDMI, 2 x USB

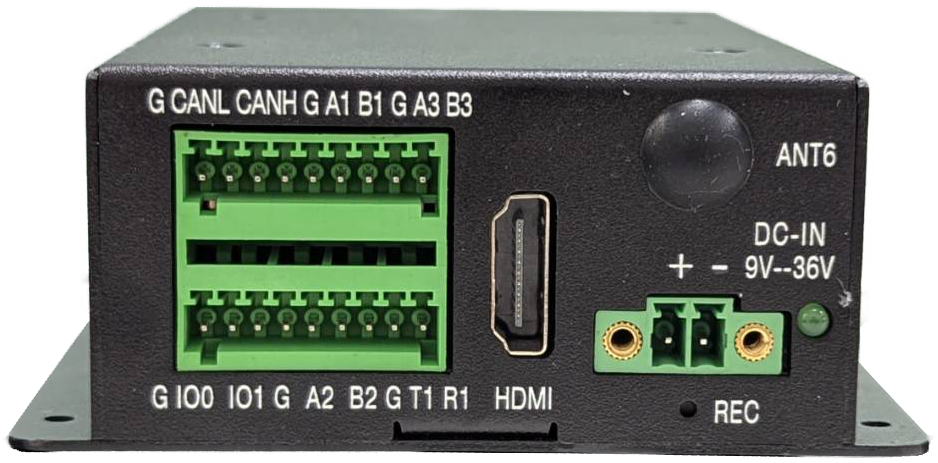

EPG-002S

Processor
64 bit Quad-core ARM
Storage
32 GB
RAM
2 GB
1 x Fast, 1 x Gigabit Ethernet, 3 x RS-485,
1 x RS-232, 1 x HDMI, 2 x USB

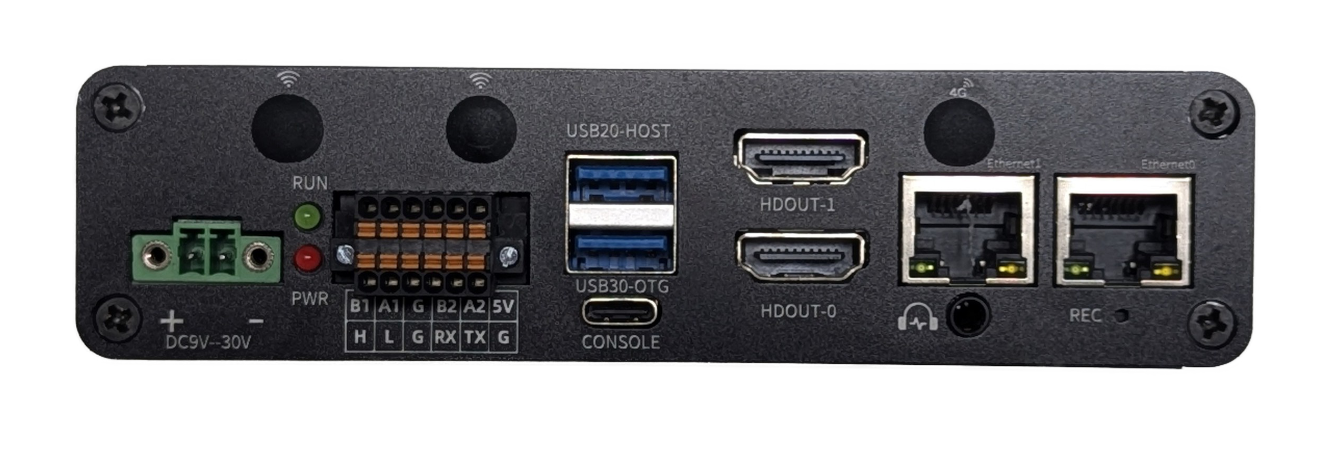

EPG-AI

Processor
64 bit Octa-Core Arm
Storage
64 GB
RAM
8 GB
2 x Gigabit Ethernet, 3 x RS-485,
2 x HDMI, 2 x USB

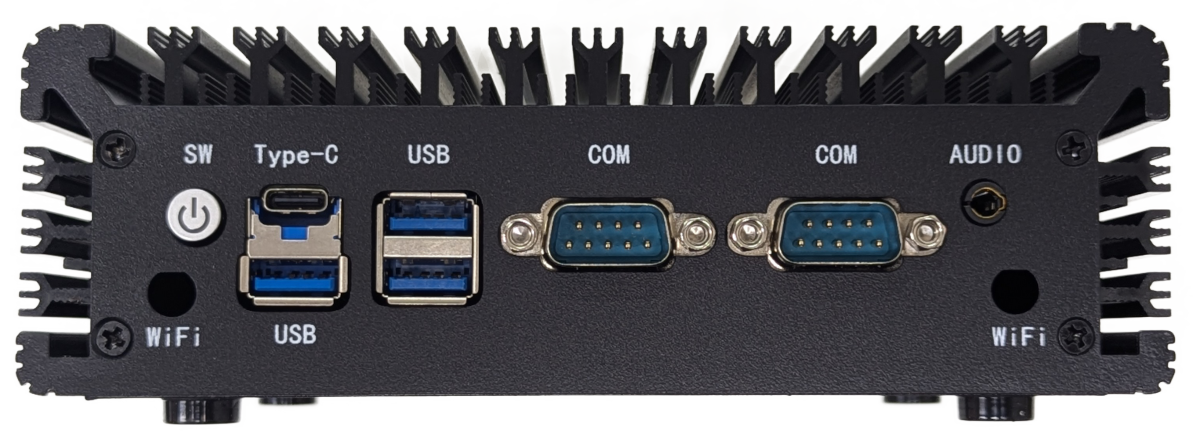

EPG-003

Processor
64 bit Quad-core Intel
Storage
128 GB
RAM
8 GB
2 x Gigabit Ethernet, 3 x RS-485,
1 x RS-232, 2 x HDMI, 6 x USB

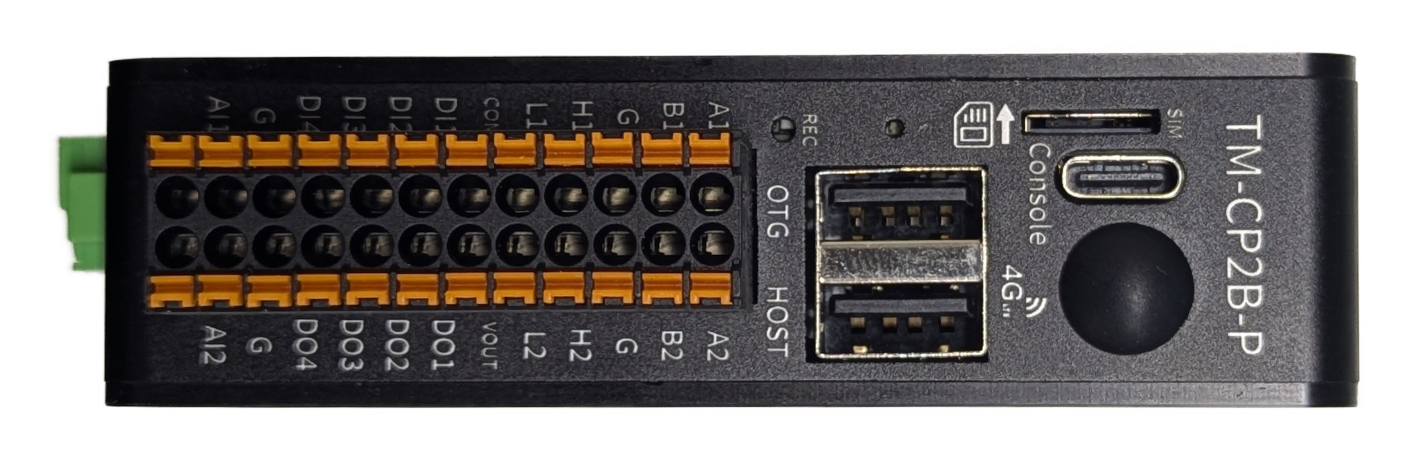

EPG-004B

Processor
32 bit Tri-Core Arm
Storage
16 GB
RAM
512 MB
2 x Fast Ethernet , 2 x RS-485,
2 x CAN FD, 2 x HDMI, 2 x USB

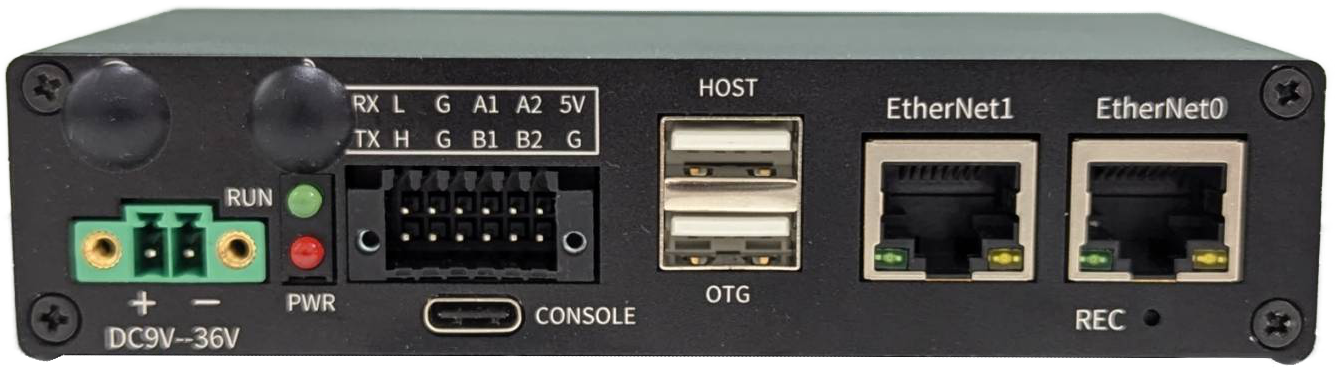

EPG-001S

Processor
32 bit Tri-Core Arm
Storage
16 GB
RAM
512 MB
2 x Fast Ethernet , 2 x RS-485,
2 x HDMI, 2 x USB

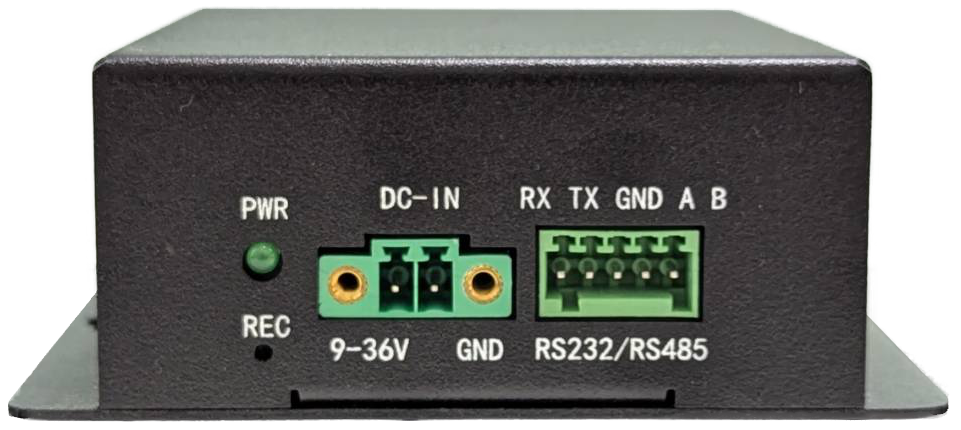

EPG-001B

Processor
32 bit Single-Core Arm
Storage
8 GB
RAM
256 MB
1 x Fast Ethernet , 1 x RS-485,
1 x RS-232, 1 x USB

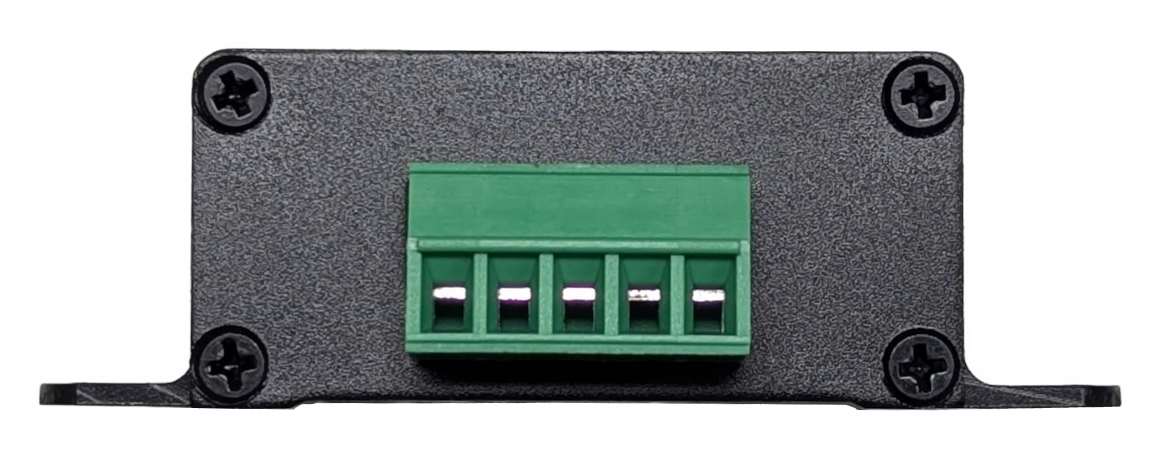

EPL-923

Processor
32 bit Single-Core Arm
Storage
8 GB
RAM
256 MB
2 x RS-485

EPL-923

Processor
32 bit Single-Core Arm
Storage
8 GB
Ram
256 MB
2 x RS-485

EPG-001B

Processor
32 bit Single-Core Arm
Storage
8 GB
Ram
256 MB
1 x Fast Ethernet , 1 x RS-485,
1 x RS-232, 1 x USB

EPG-001S

Processor
32 bit Tri-Core Arm
Storage
16 GB
Ram
512 MB
2 x Fast Ethernet , 2 x RS-485,
2 x HDMI, 2 x USB

EPG-004B

Processor
32 bit Tri-Core Arm
Storage
16 GB
Ram
512 MB
2 x Fast Ethernet , 2 x RS-485,
2 x CAN FD, 2 x HDMI, 2 x USB

EPG-002S

Processor
64 bit Quad-core ARM
Storage
32 GB
Ram
2 GB
1 x Fast, 1 x Gigabit Ethernet, 3 x RS-485,
1 x RS-232, 1 x HDMI, 2 x USB

EPG-003

Processor
64 bit Quad-core Intel
Storage
128 GB
Ram
8 GB
2 x Gigabit Ethernet, 3 x RS-485,
1 x RS-232, 2 x HDMI, 6 x USB

EPG-004S

Processor
64 bit Quad-core ARM
Storage
32 GB
Ram
2 GB
1 x Fast, 1 x Gigabit Ethernet, 3 x RS-485,
1 x RS-232, 1 x HDMI, 2 x USB

EPG-AI

Processor
64 bit Octa-Core Arm
Storage
64 GB
Ram
8 GB
2 x Gigabit Ethernet, 3 x RS-485,
2 x HDMI, 2 x USB
Industrial IoT

Edge Gateway

The ultimate Edge  IoT Gateway, an intelligent bridge between local IoT devices (sensors, machines, actuators) and the cloud or central data servers. Unlike a simple router, it processes, filters, and analyzes data at the "edge"—closer to where the data is created—before sending only essential information to the cloud.
Supported Wireless: 4G Cellular, WiFi, LoRaWAN
Supported Comm: RS-485, RS-232, Ethernet, CAN FD
I/O Slots: Digital Input, Digital Output, Analog Input, Analog Output
